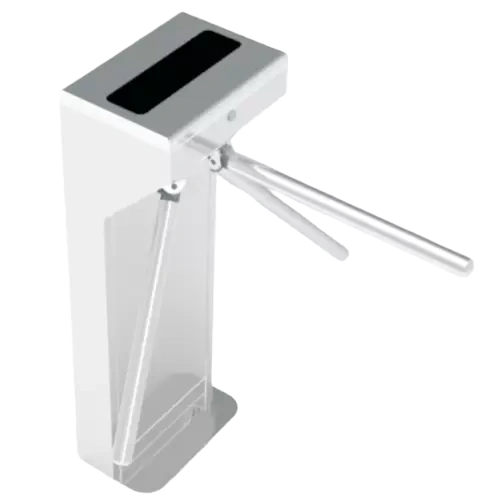

SEMI AUTOMATIC TURNSTILE GATE IDT-T1000
IDT-T1000 (semi-automatic tripod turnstile) is driven by DC brushless motor, one can easily pass with very less passing resistance. It has several working modes such as bi-direction, and single direction and all the modes can be set by using the buttons on the main control board. Beams will fall automatically when power is off and auto rise when power is on or auto stop on obstacles. It can also be integrated with function and face detection biometric for no-touch use.
Description
SEMI AUTOMATIC TURNSTILE GATE IDT-T1000
ID Tech Solutions being a leading trader, importer, supplier, and provider of Entrance Automation solutions has come up with a superior quality Turnstile Gates for entrance automation to secure the inner premises. IDT-T1000 is a rugged, durable and reliable enough to withstand all sort of environments. These turnstile gates are ensuring only authorized users are allowed access to each area of application. These devices can be easily integrated with the biometric device and RFID technology, IOT controllers or with other customized applications for better automation and tracking of all entrance and exits.
TECHNICAL SPECIFICATION
| Model | IDT -T100 |
| Size | 360mm x 260mm x 980mm |
| Material Structure | 304 original brushed stainless steel, acrylic |
| Channel Width | 510mm |
| Thickness | The full thickness of the outer box is 1.0 + 3.0mm |
| Traffic Speed | 25-30 people/min in normal open mode and 15-20 people/min in normally closed mode |
| Channel Width | One-way traffic/Two-way traffic |
| Opening Mode | ID/IC Card swiping and other reading head verification opening, button opening, etc. |
| Opening Signal | Dry contact signal |
| Life | >5 million times |
| Power | 30-60 Watt |
| Applicable Temperature | -20°C ~+75°C (add thermostat below this temperature) |
ORDERING INFORMATION
| Part Number | IDT.T1000 |
