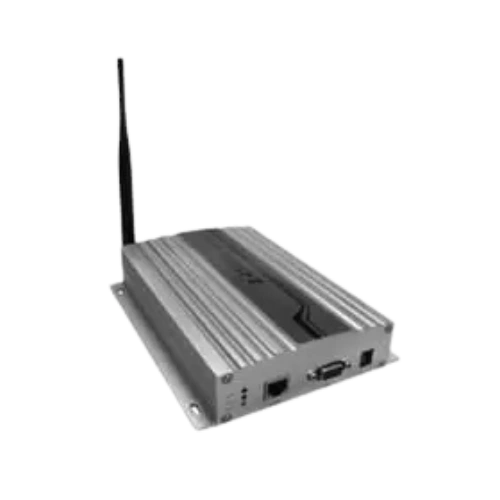

ACTIVE OMNI DIRECTIONAL READER IDT-527
IDT 527 is an Active UHF RFID reader with high performance, it is a fixed RFID reader with up to 80 meters (tag and environment dependent) reading distance. It comes with an audio-visual indicator for Power, Working, and Communication status detection. IDT 527 supports active reading, external triggers, and other modes to meet users’ various integration needs.
Its high reading range makes it the best choice for various applications including Convoy Tracking, Personnel Position Management in Hospital & Nursing Homes, Logistics, Warehouse Management, Industry Mining, and Prison Sector, and others.
Description
ACTIVE OMNI DIRECTIONAL READER IDT-527
A wide variety of fixed long Range Active Omni Directional RFID Readers, also known as fixed Multiple Direction RFID Readers or Circular RFID Readers, are manufactured, exported, and offered by ID Tech Solutions. Advanced automation and management systems, such as automatic time attendance for schools, personnel tracking in manufacturing plants, library security, access control, toll plaza automation, parking automation, hospital management, laundry automation, event management, logistics management, and other tailored automation processes and solutions, all make use of these RFID readers.
The advantage of deploying Active Directional RFID Readers is that they save a lot of time, having a read range of up to 200 meters, are more accurate, more dependable, and can be used for access and identification even in congested situations without the need to flash the card. These RFID scanners contain a built-in motion detector that restricts admission to the building to those with a valid RFID tag or card.
PERFORMANCE
| Product Dimension (Excluding Antenna) |
190mm x 120mm x 40mm | |||
| Weight | 0.6 Kg | |||
| Power Supply | DC 5V input | |||
| Power Consumption | 300mW | |||
| Tag Protocol | Private Protocol | |||
| Indicator | Buzzer, LED | |||
| Reading Range | 0-80 m (depend on the Tag Power Output) | |||
| Identification Speed | 200 tags/s | |||
| Anti-Collision | Identifying 300 tags at the same time | |||
ENVIRONMENTAL SPECIFICATION
| Temperature | -40oC to +60oC (Operating), -60oC to +80oC (Storage) |
| Humidity | 5% RH – 95% RH non condensing |
| Protection Class | IP 55 |
| Shock Resistance | 10-500Hz, 100mm/15g, Triaxial |
RF PARAMETERS
| Operating Frequency | 2.4 to 2.48 GHz |
| Outpur Power | +15dBm (adjustable by software) |
| Sensitivity | -95dBm |
| Identification Angle | Omni- Directional |
| Polarization | Vertical |
| SDP | Provided DLL and Demonstration Software Source code to Facilitate Further Development |
COMMUNICATION INTERFACES
| Interface | RS-232, 10/100M Adaptive Ethernet Interfaces |
| Expansion Interfaces | RS-485 interface, Wiegand 26/34 Interfaces |
| Wireless Expansion Module | GPRS/GSM, CDMA, 802, 11 module |
| I/O Port | 2- channel relays output (Optional), 2-channel trigger input (optional) |
| Firmware Upgrade | Support Serial Port |
| Application Software Platform | Provide development kit of API C++ and C# |
ORDER INFORMATION
| Part Number | IDT.527 |
