High Frequency Smart Cards

Embrace the realm of High-Frequency (HF) Smart Cards, revolutionizing contactless communication and secure data exchange. Powered by radio frequency technology, our HF Smart Cards enable advanced authentication, data encryption, and secure identification across diverse applications. From public transportation and event ticketing to healthcare systems and secure identity management, our HF Smart Cards provide unparalleled convenience, efficiency, and heightened security. Seamlessly integrate our HF Smart Cards into your existing infrastructure and unlock the true potential of contactless technology for your organization.

Product Inquiry Datasheet

Description

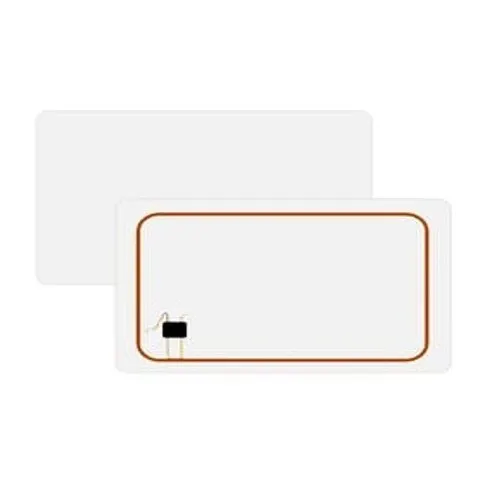

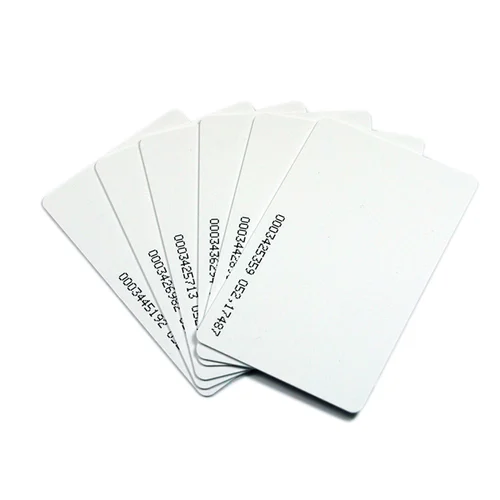

High Frequency Smart Cards

ID Tech delivers HF smart cards that harness the power of high-frequency contactless communication. Our HF smart cards provide secure data exchange, authentication, and enhanced convenience for applications such as public transportation, event ticketing, healthcare systems, and secure identification.

Physical Parameters

Dimensions 86mm x 54mm
Weight 10 g
Encasement / Material PVC, PET, PETG and PC Material
Surface Finish Matte, Frosted or UV Coated
Color Blank White, Peel-off layers / Poly Bag packing
Thickness 0.76 mm / 30 MIL, Variations Available
Card Lifespan Up to 2 years
Working Frequency 13.56 MHz
Memory Capacity 1K, 4K (Chip dependent)
Chip Type Mifare Classic (1k), Mifare Classic (4k), Mifare Ultralight, Mifare Ultralight
EV1, Mifare Ultralight C, Mifare DESfire, Mifare DESfire EV1, I Code SLIX.
Working Mode Read and Write
Reading Range 20-25cm (Depends on chip and reader)
Data Retention Up to 10 Years
Anti-Collision Yes
Operating Temperature -25 to +70 degree Celsius
Storage Temperature -25 to +50 degree Celsius
Package 200 Qty in 1 box
Weight 1.5 kg per box
Printing Yes available for both side
Lamination Double side coated

ORDER INFORMATION

IDT.LC.02

Part No. IDT.HFC.M1K
IDT.HFC.M4K

Embrace the realm of High-Frequency (HF) Smart Cards, revolutionizing contactless communication and secure data exchange. Powered by radio frequency technology, our HF Smart Cards enable advanced authentication, data encryption, and secure identification across diverse applications. From public transportation and event ticketing to healthcare systems and secure identity management, our HF Smart Cards provide unparalleled convenience, efficiency, and heightened security. Seamlessly integrate our HF Smart Cards into your existing infrastructure and unlock the true potential of contactless technology for your organization.
