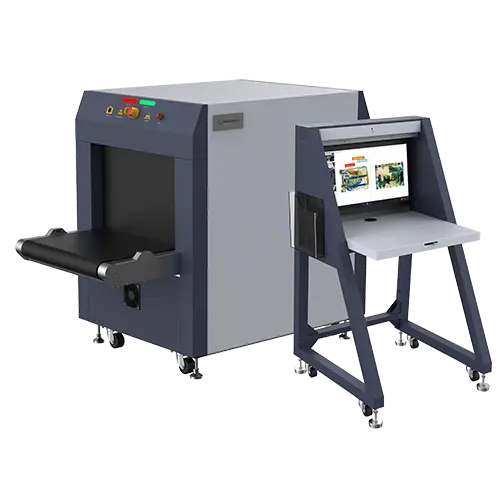

The IDT6040B X-Ray Baggage Scanner is a high-performance, reliable baggage inspection solution designed to enhance security screening efficiency and accuracy across airports and other high-security environments. Engineered as a single-view X-ray scanner, it provides fast, precise screening for carry-ons, briefcases, and parcels. With a tunnel size of 600 x 400 mm, crisp high-definition imaging, intuitive touchscreen controls, and rapid conveyor throughput, the IDT6040B ensures clear threat detection and smooth operations at busy security checkpoints. Its compact design, energy-saving features, and robust construction make it ideal for modern security operations.
Why Choose IDT6040B X-Ray Baggage Scanner?
Ready to enhance your security operations with smart, automated screening?
Ensure precise, safe, and efficient baggage inspection with the IDT6040B X-Ray Scanner.
The IDT6040B X-Ray Baggage Scanner is a next-generation inspection system designed to optimize security screening processes. Its single-view X-ray system provides high-definition imaging for carry-on luggage, parcels, and briefcases, ensuring accurate and rapid threat detection. Built for durability and ease of use, the 6040B features a compact footprint, intuitive touchscreen interface, and seamless integration with security protocols. With energy-saving features, sound and alarm alerts, and baggage counting capabilities, the IDT6040B supports continuous, high-volume operations while maintaining maximum security standards. Its ability to scan palletized loads adds flexibility for diverse security applications.
| Dimension | |
|---|---|
| Tunnel Dimension | 620 mm (W) × 420 mm (H) |
| System Dimension | 2011 mm (L) × 887 mm (W) × 1260 mm (H) |
| General Specifications | |
| Conveyor Height | 600 mm |
| Conveyor Speed | 0.2 m/s, 0.3 m/s, 0.4m/s adjustable |
| Max. Conveyor Capacity | 165 kg (Even Distributed) |
| Performance | |
| Wire Resolution | 38/40 AWG |
| Penetration (Steel) | 34/36 mm |
| X-ray Generator | |
| Number of Generators | 1 |
| Anode Voltage / Current | 160KV |
| Cooling / Working cycle | Oil-cooling / Continuous |
| Health and Safety | |
| External dose rate | < 0.5 µSwh (50mm Distance to the Housing) |
| Film Safe | Guaranteed up to ISO1600 |
| Detection Algorithm | |
| Prohibited Goods | 35 Major Types, over 64 categories |
| Detection Others | Shield Alarms, etc. |
| Integrated Cameras | |
| Cameras | 3 Camera, Resolution: 1920×1080 1/2.8″ |
| Sensor Type | Progressive Scan CMOS H:265 / H:264 / |
| Video Compression Standard | MJPEG |
| Installation Data | |
| Power Consumption | < 0.8 KVA |
| Power Supply | AC 220V (-15% to +10%) , 50Hz/60Hz (±3Hz); AC 110V (-15% to +10%) , 50Hz/60Hz (±3Hz); |
| Noise level | < 60 dB |
| Environment | |
| Operating Temperature / Humidity | 5°C to 40°C / 5 % to 95 % (non-condensing) |
| Storage Temperature / Humidity | -20°C to 60°C / 5 % to 95 % ( non-condensing) |
| Weight | 700 Kg |
| Additional Features | |
| Image Processing | Color / Black & White(C/BAW), Organic Stripping(ORG-), Inorganic Stripping(INORG-), Negative, High / Low penetration (H/L), Absorptivity increase(ABS+), Absorptivity decrease(ABS-), Super Enhancement(SEN), Edge Enhancement (Edge), 64x seamless zoom in and out, etc. |
| Software Functions | Professional TIP system, Operation Intro, Photo and X-ray image connection, etc |
| Operation Display | 21.5 inch |
| Storage | 1.00,000 + |
| Order Information | |
| Part Number | IDT.6040A1 |
