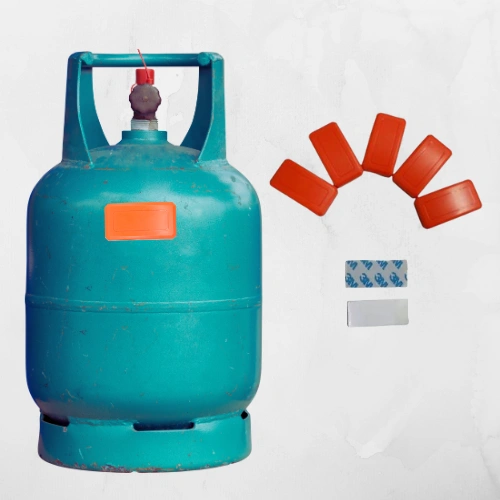

RFID Cylinder Tags

ID Tech Solutions provides rfid gas cylinder tags of abs material that have good anti-metal properties, can be read and written at long distance in metal surface. It has the characteristics of high temperature resistance, water resistance, acid and alkali resistance, impact resistance, and so on. For tracking Millions of personal commercial/industrial gas cylinders on a daily basis, the manual tracking systems are tedious and error prone leading to significant losses to gas cylinder providers. The cylinders enabled with RFID technology are thus a boon for those management systems entrusted with the onerous task of maintaining inventories. Mainly used in electronic equipment, asset maintenance, gas cylinders, elevator maintenance, auto parts, high pressure boilers, high pressure vessels, high pressure pipes, lifting machinery, recreational facilities and other metal goods and special equipment management.

  • Description

Description

RFID Cylinder Tags

Specification:

Operating frequency: 840-960MHz EPC global class1 gen2

Protocol: ISO/IEC 18000-6C compliant

Read distance: up to 8m (reader dependent)

Type: alien higgs-3/4, monza 4/4QT/5/R6, UCode

Memory: chip dependent

IP rating: IP68

Dimensions: 100mm*15mm*10mm

Material: ABS/PC

Storage temp.: -40°C to +85°C

Operating temp.: -40°C to +85°C

Shelf life: in year

Mounting: adhesive, Magnets

Customization: logo, serial number, color

Areas of application: asset tracking, warehouse, container, cylinders
