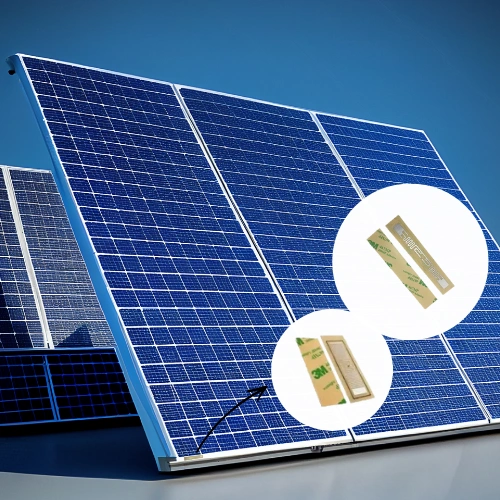

RFID Solar Tags
ID Tech Solutions Provides a specially designed range of solar tags with enhanced read range compared to standard passive UHF tags for similar usage. These tags provide absolute reliability and accuracy, with superior read rates on solar panels and modules. They are specifically designed for Solar Panels with long lasting capability in harsh environment. As per the MNRE guidelines it is mandatory that each solar or PV Module must contain an RFID tag in order to identify and track it throughout its useful life. It also contains a serial number that uniquely identifies the module. We set the entire requirement for PV modules as per MNRE, Government of India. Having an enhanced read range and reduced size, our tags are ideal for tracking solar panels, Individual panel identification, etc., Ensuring adherence to MNRE standards.
|RFID Solar Tags|
|Electrical||Operating Frequency||840-960 MHz EPCglobal Class 1 Gen 2|
|Protocol||ISO/IEC 18000-6C compliant|
|Read Distance||Reader Dependent|
|Chip Type||Type||Alien Higgs-3|
|Environment Protection||Storage Temprature||0°C to +50°C|
|Operating Temprature||-40°C to +70°C|
|Expected Life Time||2 years|
|Options Available||Mounting||General Purpose Adhesive|
|Areas of Application||Solar PV Module Tracking|
RFID Keyfobs0 out of 5
ID Tech Solutions provides a wide range of RFID key fobs and RFID-enabled fobs. RFID Fobs suit many application needs and can be typically used for: access control, attendance control, identification, logistics, industrial automation, tickets, casino token, membership, public transportation, e-payment, swimming pools, laundry and many more.
RFID cards & key fobs are more secure and more cost-effective that also offer a better user experience. Smart key fobs are the chips and coil enclosed in a keychain, also called RFID key fobs, NFC key fobs, proximity key fobs, hide key fobs, RFID key tags, and RFID key chains.
RFID Active Tags0 out of 5
ID Tech Solutions provides extensive range of RFID Active tags, which are comprised of readers, tags, and antennas; however, whereas passive systems require the tags to be energized by the reader, active RFID systems utilize battery powered RFID tags that require no energy from the reader to send a signal. Active RFID tags possess their own power source and transmitter enabling the tag to broadcast its signal, performance capabilities include longer read ranges and greater memory capacities when compared to passive RFID tags. Typically, active RFID tags are powered by a long life battery that will last a few years, but will eventually require replacing.
RFID Asset Tags0 out of 5
ID Tech Solutions provides Asset Tag which is designed for fast and reliable Item identification. The passive UHF tag is designed to work on Items and suitable for wide section of Surfaces. It is designed to work for a wide range of asset identification applications such as asset management, asset Tracking, Inventory management, Entry/ Exit Permit, and Access Control. Using the Alien 9654 RFID inlay this product provides a read range of approximately 18+ feet. The inlay utilizes passive technology and is encapsulated between thin layers of polyester adding human readable printing to one side and a Asset-compatible adhesive to the other. ID Tech Asset Label is non-transferable and cannot be removed without being destroyed. A tamper-evident option with strategically placed slits in the label and adhesive layers is also available at no extra cost. The user memory is password protected and can hold encrypted user data.
RFID Jewellery Label Tags0 out of 5
RFID jewellery tags provided by ID Tech Solutions are contactless and could be written with different functions. These rfid jewellery labels specially are designed for use in jewellery market communities such as jewellery warehouse and jewellery shops management. It could meet perfectly the tracking requirement of the jewellery industry in terms of size, shape and ease of fixation. Our rfid jewellery labels is embedded in a white patented adhesive label adoptable to any type of jewellery, including rings, earrings and necklaces. And the labels enable jewellery to be quickly and reliably identified all along their distribution chain, from warehouses to point-of-sales, Whether in bags, on trays or on shelves, several pieces of jewellery can be easily
inventoried using fixed or portable RFID reading stations.
RFID Wristbands0 out of 5
ID Tech Solutions provides RFID NFC slicone wristband for RFID access control applications. RFID security access nfc silicone wristband are IP68 waterproof, durable, eco friendly, heat resistance, and anti-allergy. All our security nfc silicone wristband are available with 125 KHz LF, 13.56 MHz HF and UHF ICs. Widely used in door access control, member management, payment tracking, pet/lost tracking etc. These are re-usable RFID wristbands will integrate with Access control, Membership Management and Locker systems.
These bands can be used in gyms, health clubs, leisure clubs, swimming pools, saunas, spas, waterparks, theme parks, attractions, events, festivals, events, exhibitions, outdoor centres, hotels, schools, universities, security controlled buildings.
RFID Wire Tags0 out of 5
ID Tech Solutions provides rfid wire tags which are flexible wire-based RFID tag, that features a rugged MSOP (packaged chip) on FR4 board electronics. It has excellent read/write performance on any non-metal surface. This tag is durable enough to be embedded in concrete, plastics, fiberglass, etc and still provide reliable performance. Their flexible design allows them to be used in a wide variety of form factors. Because of their unique design, they can provide a 360° read profile to reduce orientation sensitivity. The core of this RFID tag is a small rugged circuit board with a metal wire antenna. More durable than inlay tags, these wire based tags combine strength with flexibility. A variety of encapsulations are available: high temperature Teflon or silicone, durable vulcanized rubber, and integrated cable ties. These versatile tags can be attached with a broad range of mechanical methods.
RFID Jewellery Hard Tags0 out of 5
ID Tech Solutions Provides a large range of RFID jewellery hard tags, which has a smooth surface for convenient labelling of price, material, style or other information. These are very small and attractive in size & shape with multi read/write capability and also dust & Waterproof. These are Flexible Read/Write Range (reader dependant). Insensitive to almost all non metallic materials. The Jewellery Tag is specifically designed to protect high value jewellery and small, expensive accessories. Hundreds of pieces of jewellery attached with RFID Jewellery tag can be read in seconds. Very effective in taking inventory of jewellery.
RFID Tyre Tags0 out of 5
ID Tech Solutions Provides UHF RFID Tire tag which accord with EPC Class1 Gen2/ISO18000-6C v.These tag are specially designed to survive the high temperatures encountered in the tire re-treading process and is sturdy enough to remain operational throughout the operating life of the tire. The tag has finished thousands of kilometres actual road test, did not lead to potential tire defects. Flexible construction to withstand tire deformation in the total lifetime of the tire. Tire tag Use in tires for trucks, cars, motorbikes and various others private, commercial, public and government vehicles for tire management.
RFID Windshield Tags0 out of 5
ID Tech Solutions provides a comprehensive range of RFID Windshield Tag which are designed for fast and reliable vehicle identification. The passive UHF tag is designed to work on car windshield glass and suitable for wide section of Vehicles. It is designed to work for a wide range of vehicle identification applications such as Toll Road management, Vehicle Tracking, Car Washes, Fleet management, Parking Permit, and Access Control. This product has a special printed antenna which makes it completely tamperproof. The specially designed antenna gives it an maximum reading range of up to 25 feet.
RFID Ceramic Tags0 out of 5
ID Tech Solutions provides RFID Ceramic tags of ceramic material features having better permittivity, more robust when comparing with the conventional RFID tags. ID Tech RFID provides the best-in-class ceramic RFID tags for all industrial applications. With the high dielectric ceramic core, our ceramic RFID tags have superior read performance with minimum footprints, our ceramic RFID tags are the ideal RFID tags for applications where need to attach to or embed in metal assets. The durable ceramic structure makes the ceramic tags are able to survive the harsh application environment, and some of them can withstand medical sterilization process with 150 degrees Celsius.
Typical applications for ADC ceramic RFID tags:
- RFID Tool tracking and identification
- Data center IT asset management
- Medical asset management
- Laboratory RFID application
